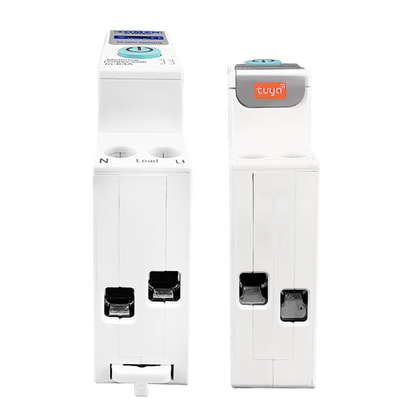

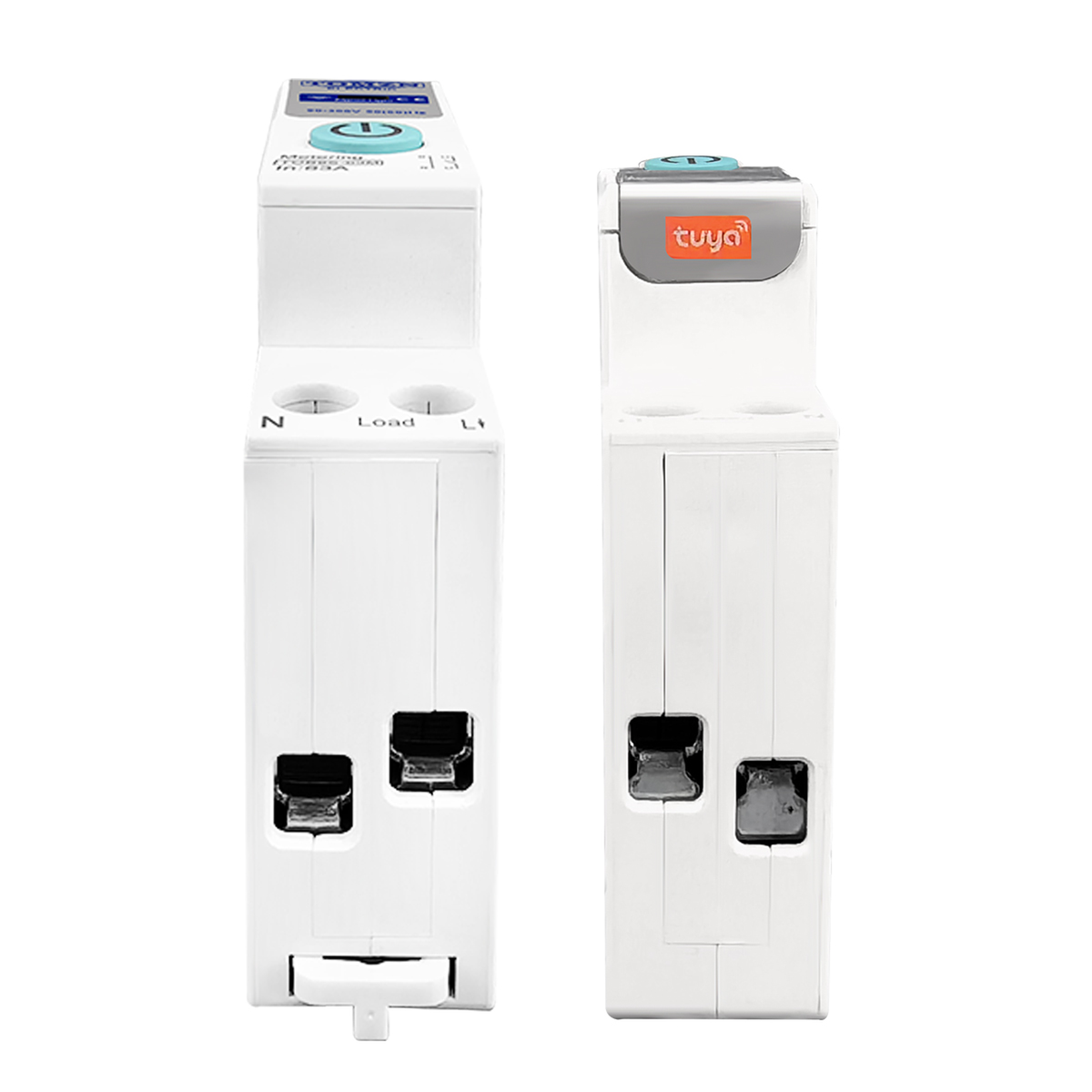

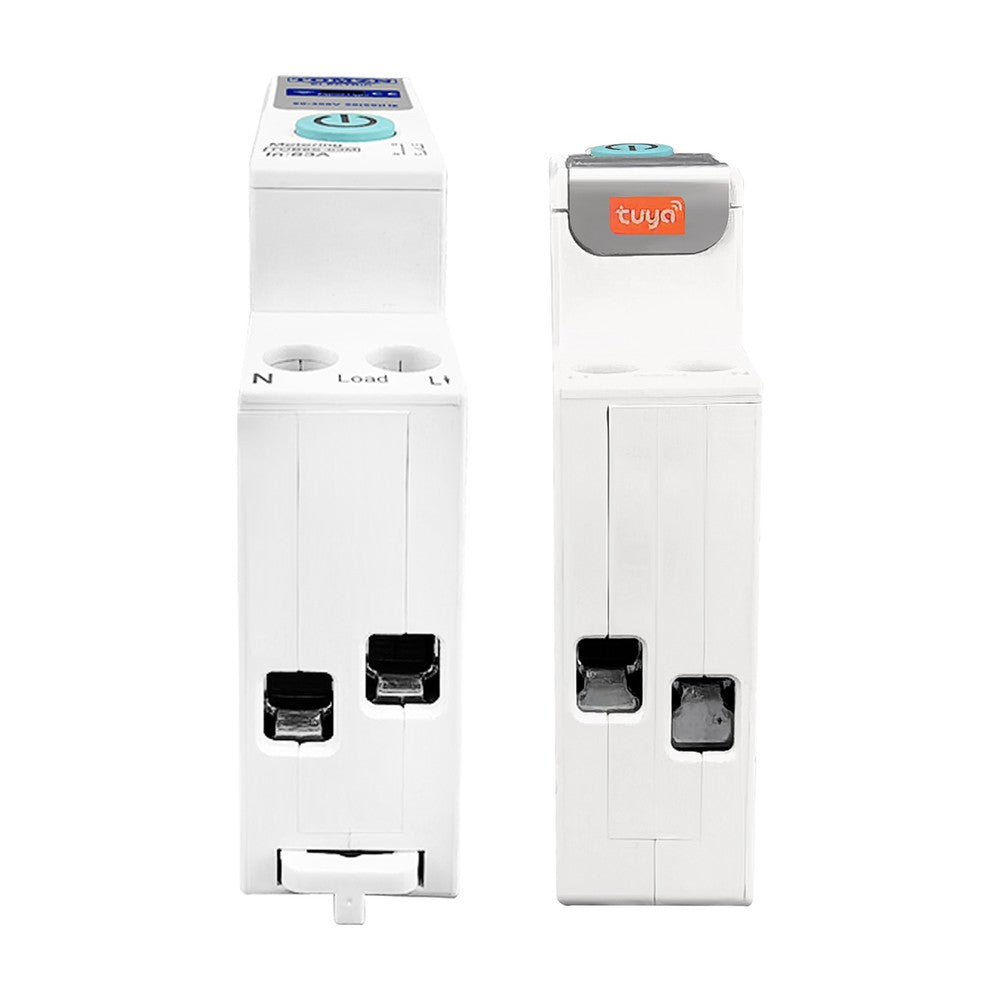

  • Tomzn TOB9S-VAP front and angle views from Alibaba

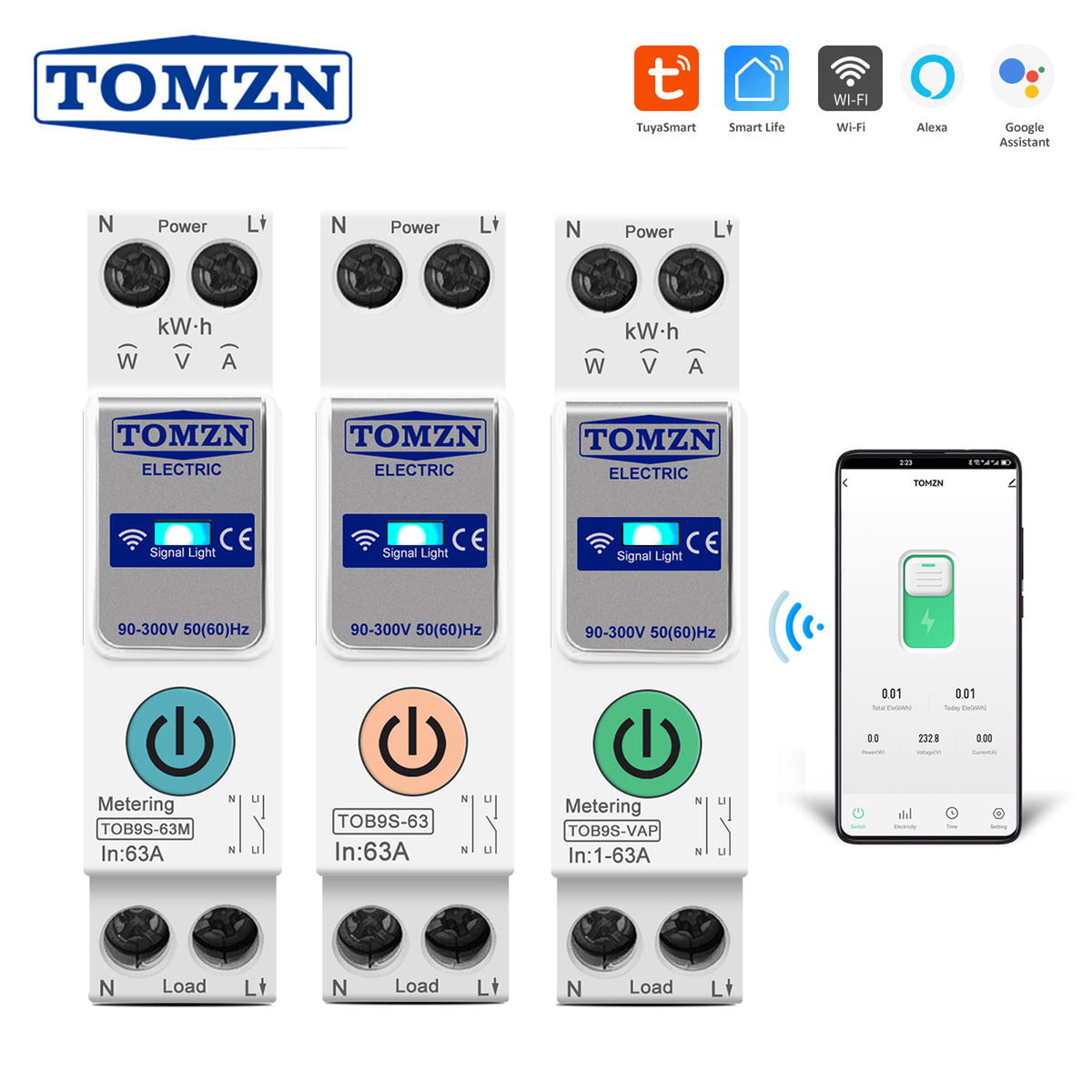

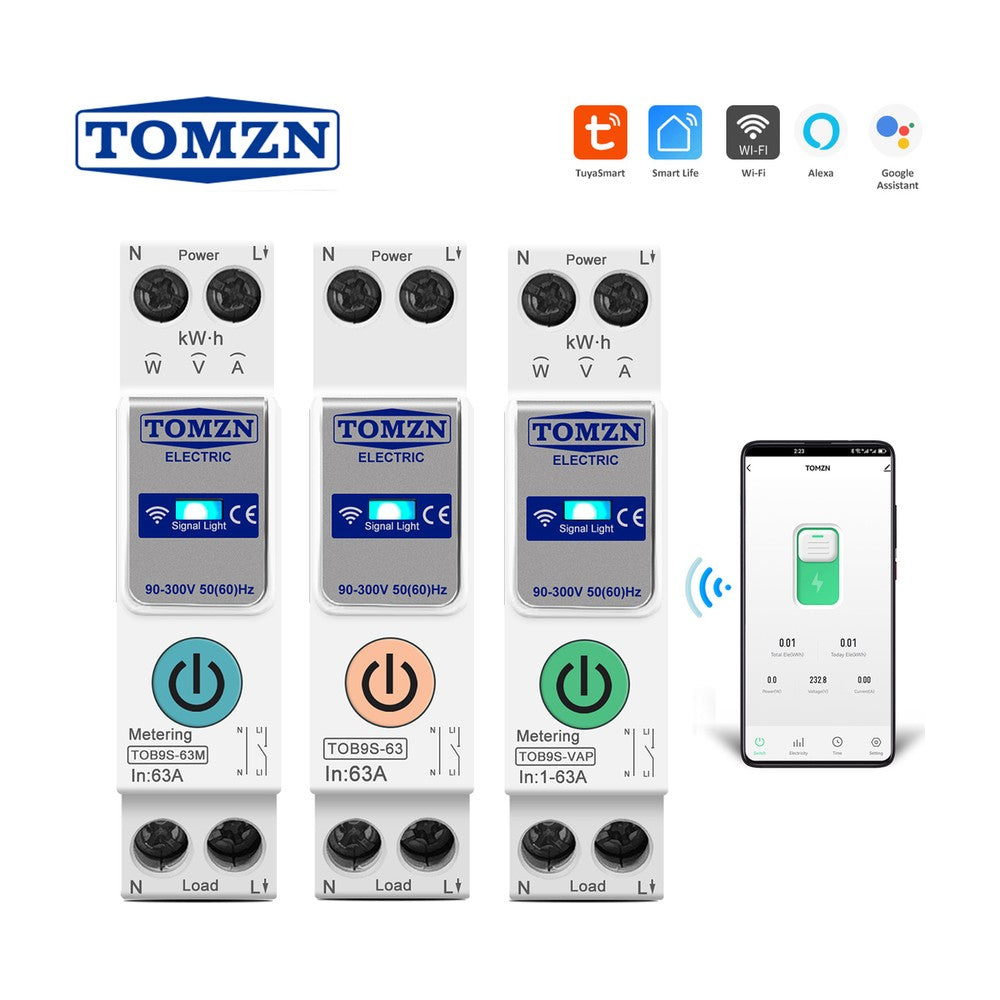

  • Tomzn TOB9S series with Smart Life app - TOB9S-VAP

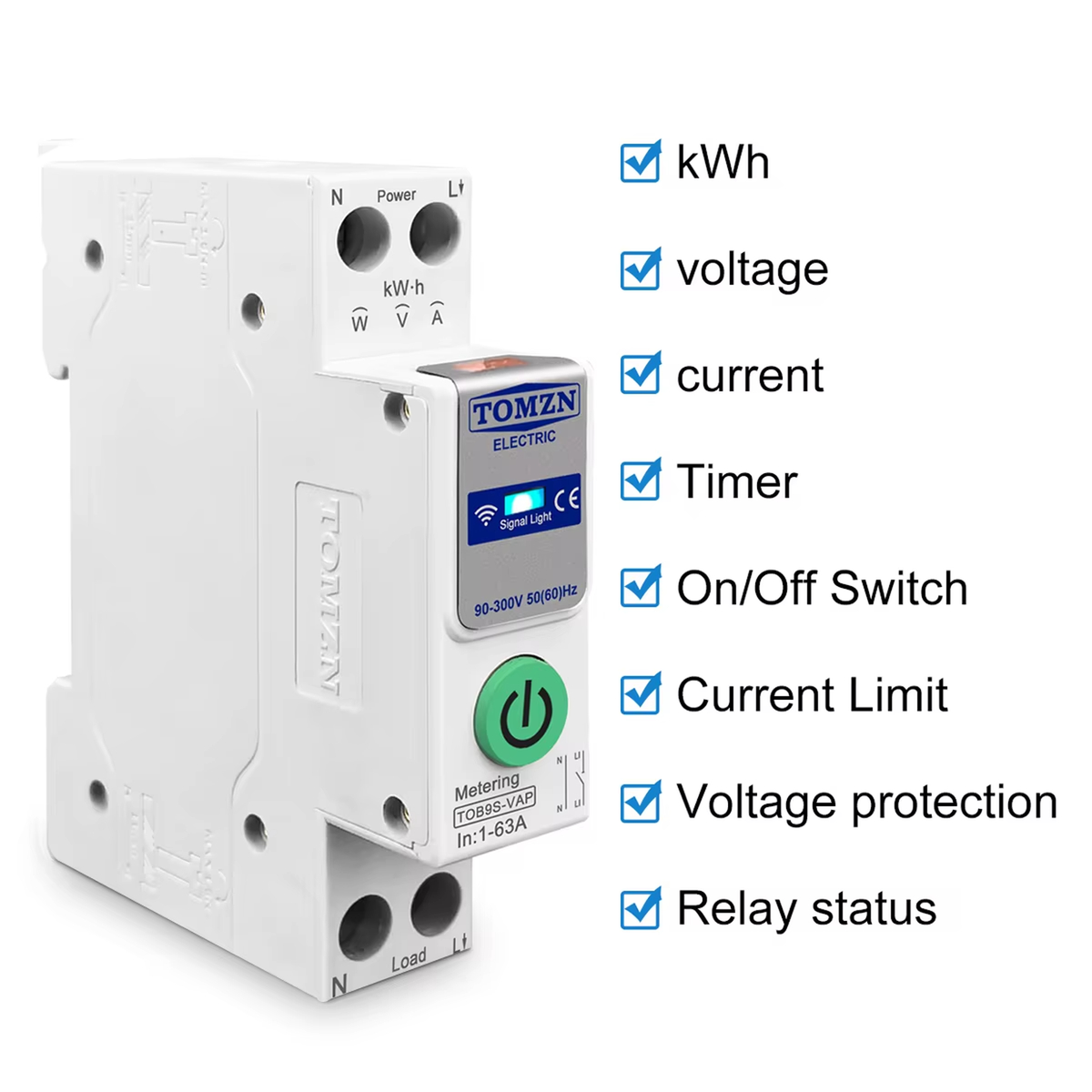

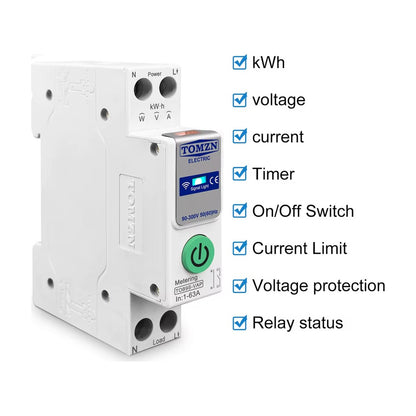

  • Tomzn TOB9S-VAP feature callouts from Alibaba gallery
1 4

Tomzn

Tomzn TOB9S-VAP 63A WiFi Smart Circuit Breaker with Energy Monitoring

Tomzn TOB9S-VAP 63A WiFi Smart Circuit Breaker with Energy Monitoring

Rs.3,599
Rs.4,400 Rs.3,599
Sale Sold out
  • Free delivery Free delivery on orders above Rs. 2,500
  • Easy returns 7-day easy return policy
  • Delivery time Delivery within 2–5 working days
View full details


Tomzn TOB9S-VAP 63A 1P+N WiFi Smart Circuit Breaker with Metering & Protection

Full-function smart circuit breaker with built-in energy metering, multi-layer protection, and remote control. Designed for safe and intelligent power management in homes and commercial systems.

Specifications

Model No. TOB9S-VAP Structure MCB
Poles 1P+N (2P) Type WiFi Smart Circuit Breaker
Rated Current 1-63A Adjustable Rated Voltage 90V - 300V AC
Frequency 50 / 60 Hz Connectivity Wi-Fi 2.4GHz Only
Functions Overcurrent Protection
Over / Under Voltage Protection
Over Power Protection		 Metering Voltage, Current, Power, kWh
Remote Control ON / OFF via App Timer Functions Schedule Timer, Loop Timer, Countdown
Relay Memory Last Status After Power Loss Voice Control Alexa & Google Assistant
Operating Temperature -25C to +70C Mechanical Life > 100,000 Operations
Certification CE Mounting DIN Rail
Brand TOMZN Origin China (Zhejiang Tongzheng)

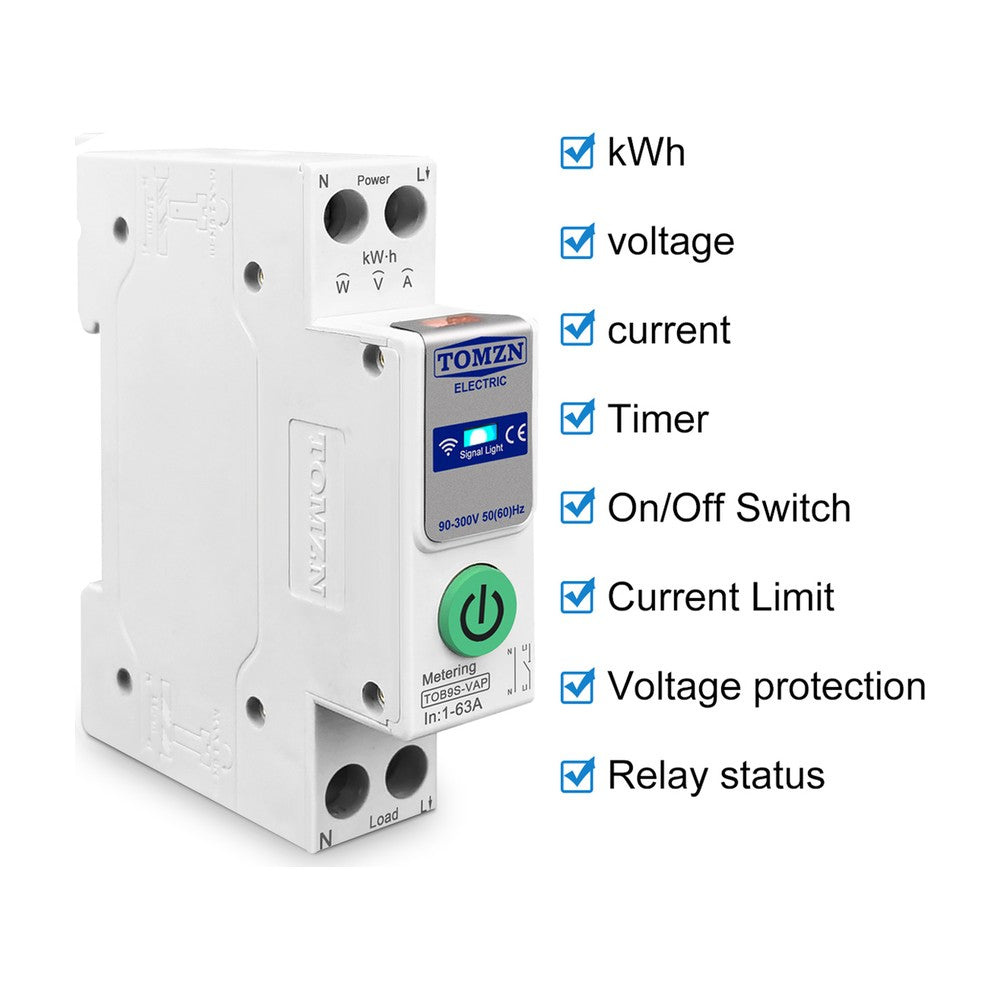

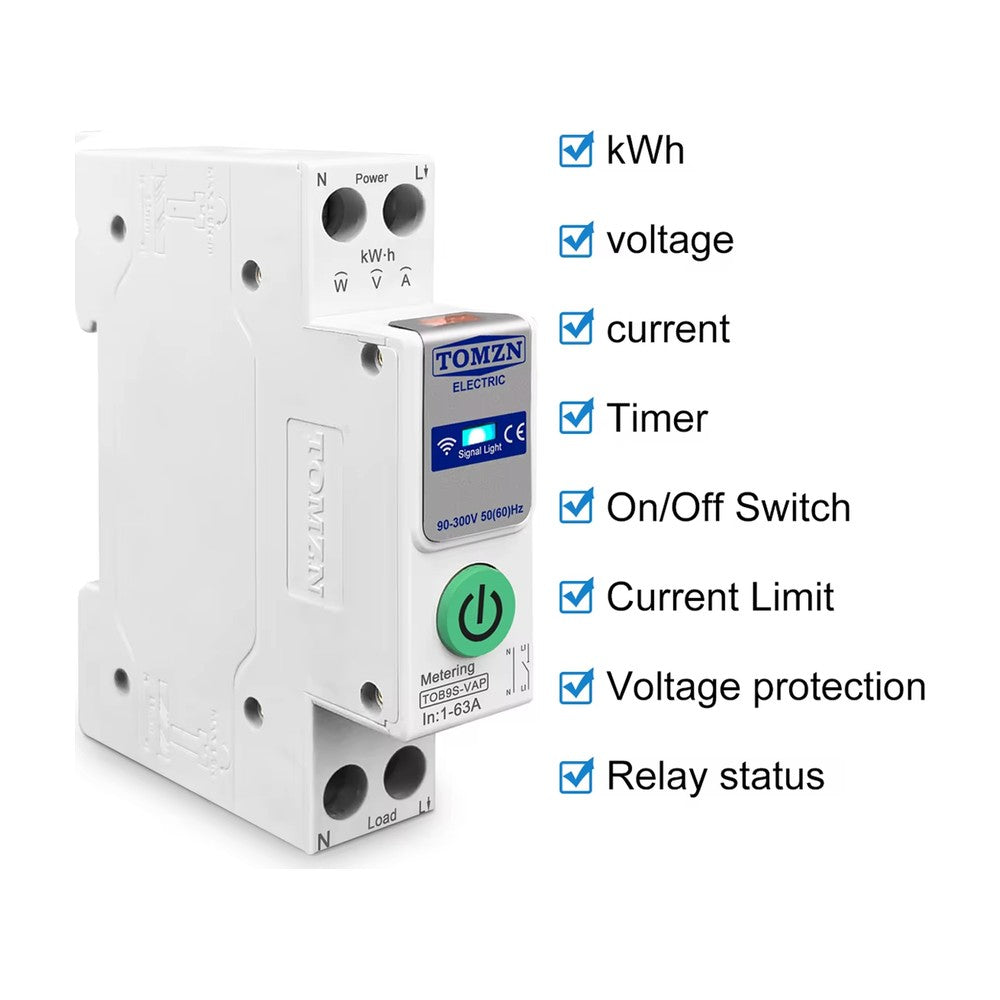

Features

  • Smart Remote Control: Turn power ON or OFF from anywhere using the Smart Life or Tuya app.
  • Energy Monitoring: Built-in voltmeter, ammeter, power meter, and kWh metering for real-time usage tracking.
  • Advanced Protection: Automatically trips on over-voltage, under-voltage, over-current, or over-power conditions.
  • Timer & Automation: Supports scheduled, countdown, and loop timers for automated operation.
  • Memory Function: Restores last relay state after power failure.
  • Voice Assistants: Works with Amazon Alexa and Google Assistant.

Important Notes

  • Supports Wi-Fi 2.4GHz only (not compatible with 5GHz networks).
  • Works exclusively with Smart Life App or Tuya Smart App (not compatible with Home Assistant).
  • Wiring: Power must enter from the top using Live + Neutral (L+N). Do not use Live + Live (L+L).
