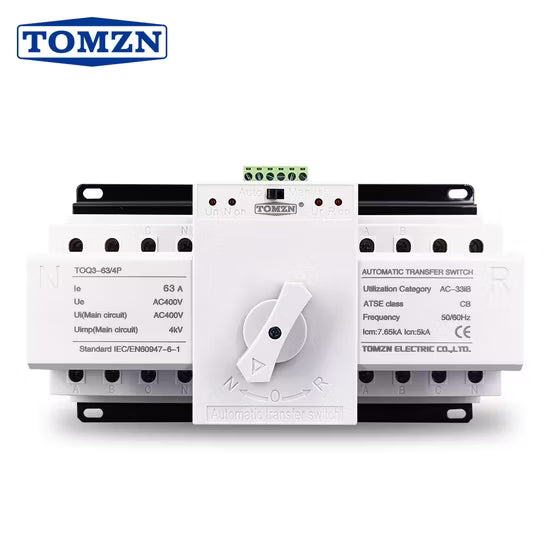

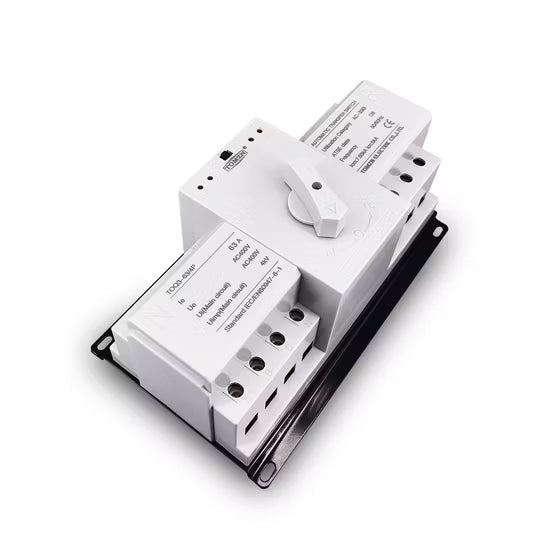

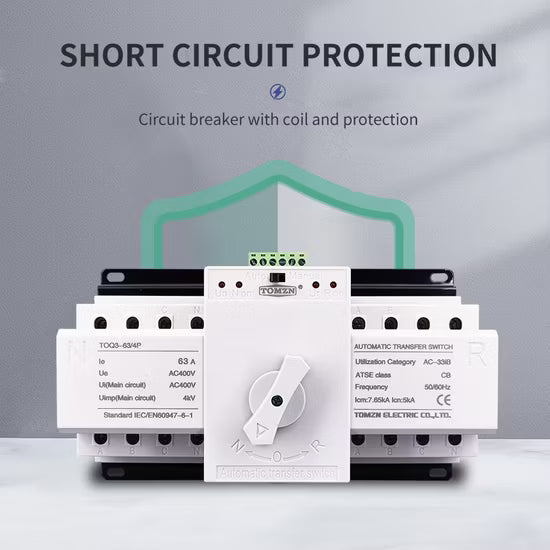

TOMZN Four Pole Automatic Transfer Switch ATS 63A

TOMZN Four Pole Automatic Transfer Switch ATS 63A

Rs.7,200
Rs.8,000 Rs.7,200
Sale Sold out
  • Free delivery Free delivery on orders above Rs. 2,500
  • Easy returns 7-day easy return policy
  • Delivery time Delivery within 2–5 working days
View full details


Tomzn 4P 380V MCB Type Automatic Transfer Dual Power Switch (ATS)

Reliable dual power switch for automatic changeover between main and backup power.

Model No. TOQ3-63/4P Operation Automatic or Manual
Certification CE Type Integrated automatic transfer switch
Poles 4P Output Type 1 or 2 Output
Rated Voltage 380V 50/60Hz Max Current 63A / 100A / 125A
Switch Time < 4s Pollution Level Grade 3
Installation Category 3 Function Overload Protection
Environmental Temperature -5°C ~ +40°C Specification 1.87kg / 3220cm³

Overview

The Tomzn TOQ3D Automatic Transfer Switch (ATS) automatically switches between normal and reserve power sources. It ensures uninterrupted supply for your essential equipment.

Key Features

  • Automatic & Manual Control: Switches automatically or manually between two power sources.
  • Fast Switching: Power transfer time is less than 4 seconds.
  • High Capacity: Rated voltage 380V (50/60Hz), current up to 63A.
  • Safety Built-in: Protects from voltage loss or phase failure.
  • Standards Compliant: Meets IEC60947-6-1 and GB/T14048.11 standards.

Usage

Ideal for homes, offices, and small industries using dual power setups such as WAPDA + generator or solar systems.

Note: This switch does not start or stop the generator automatically.
