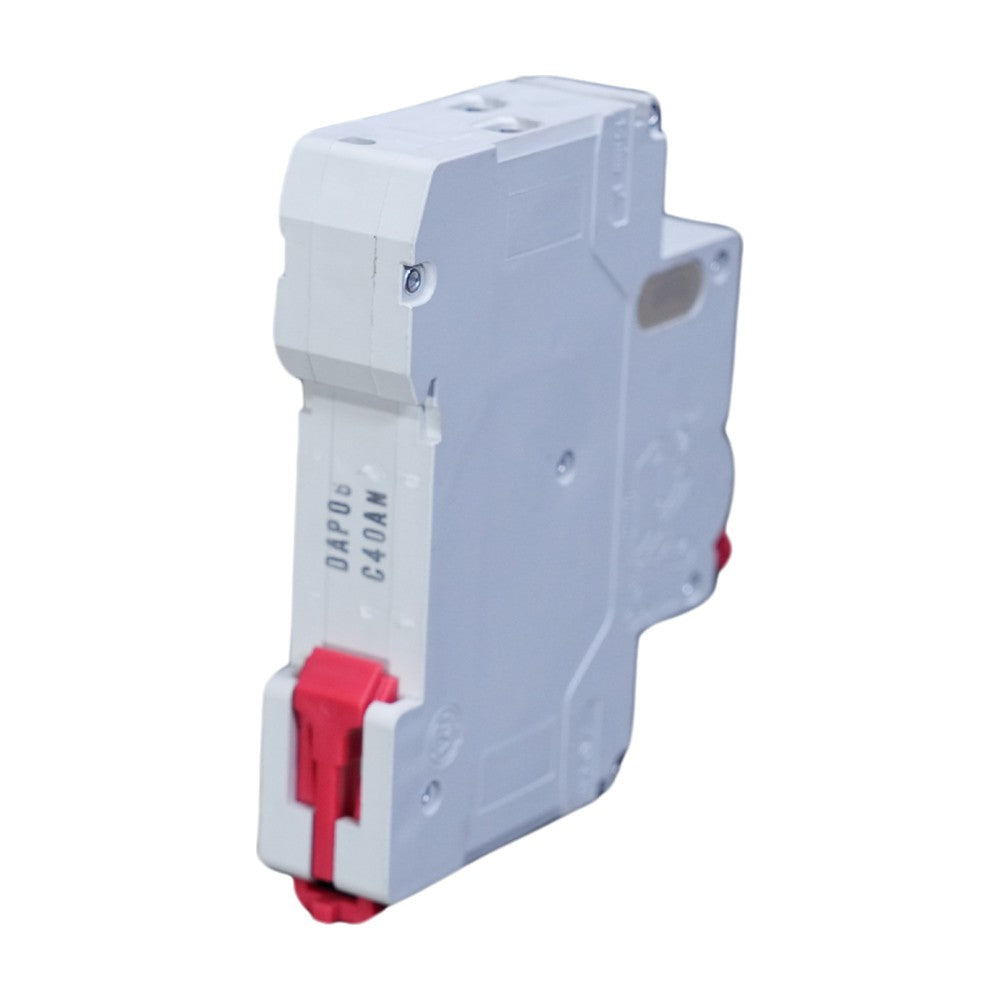

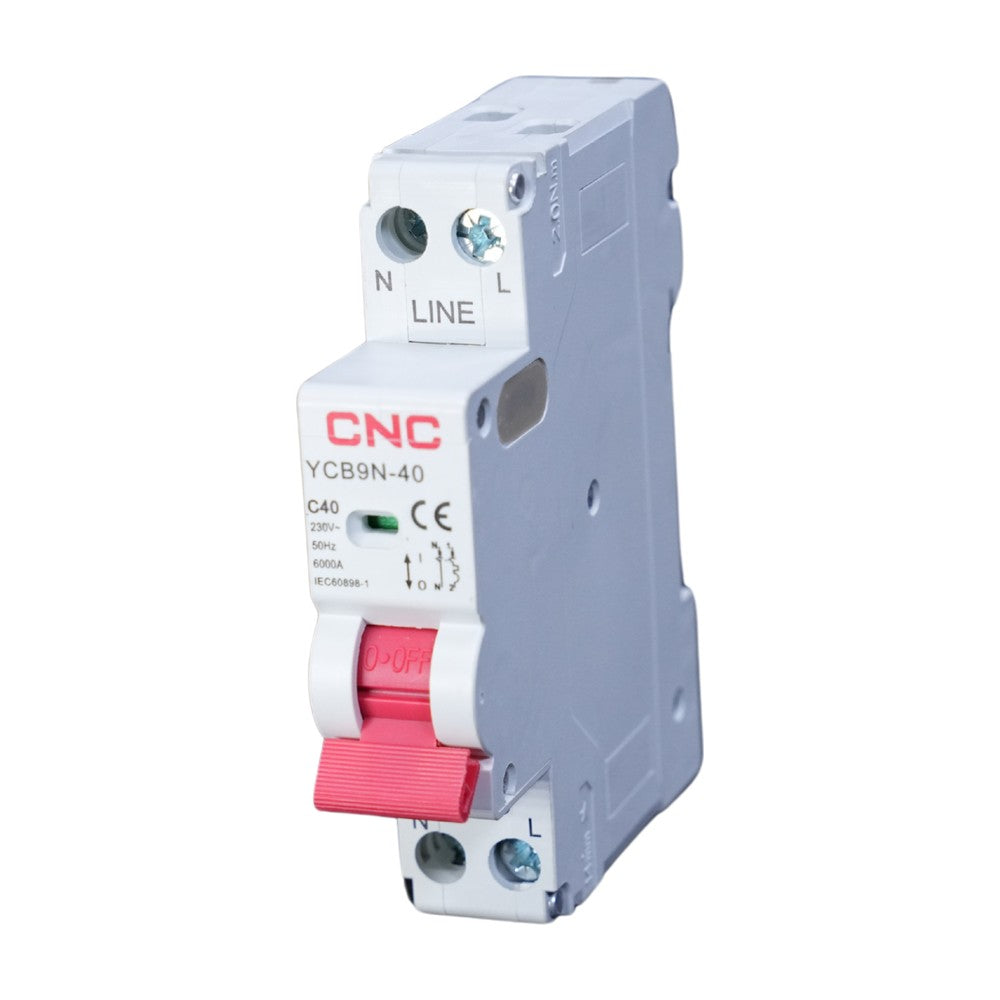

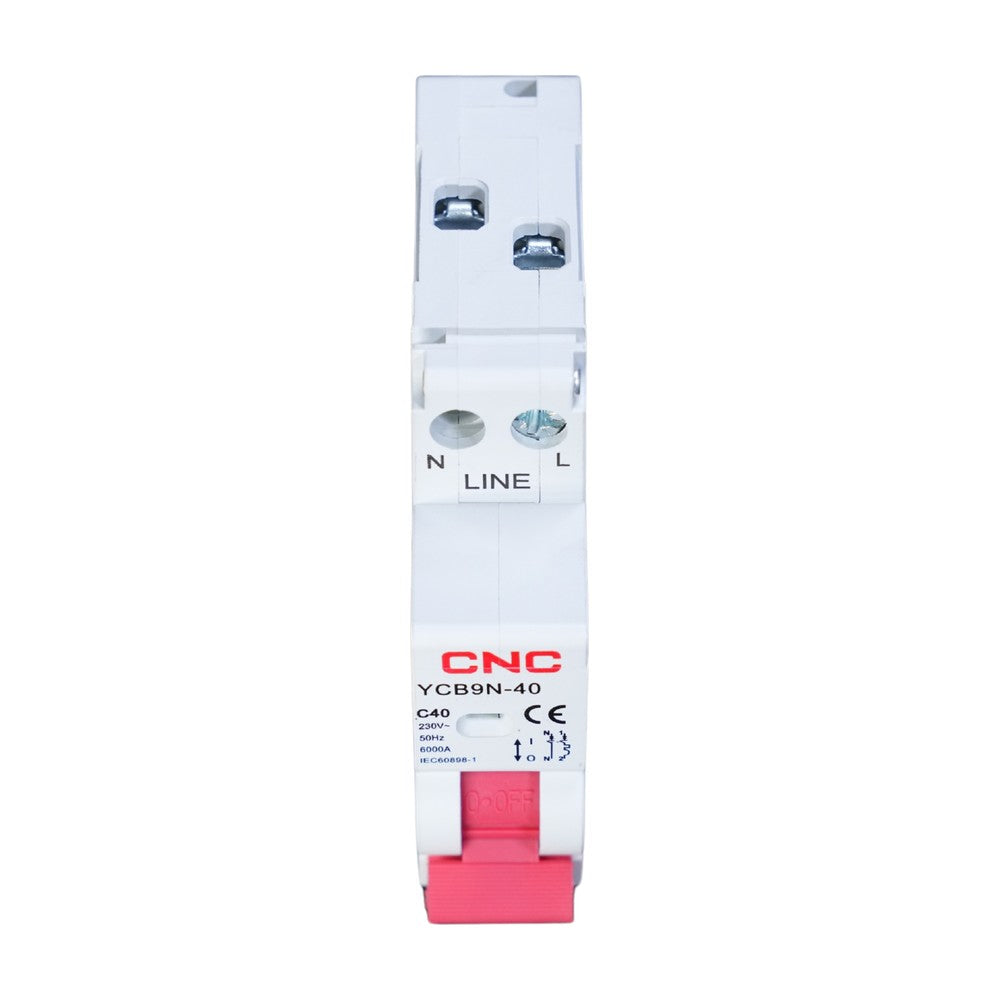

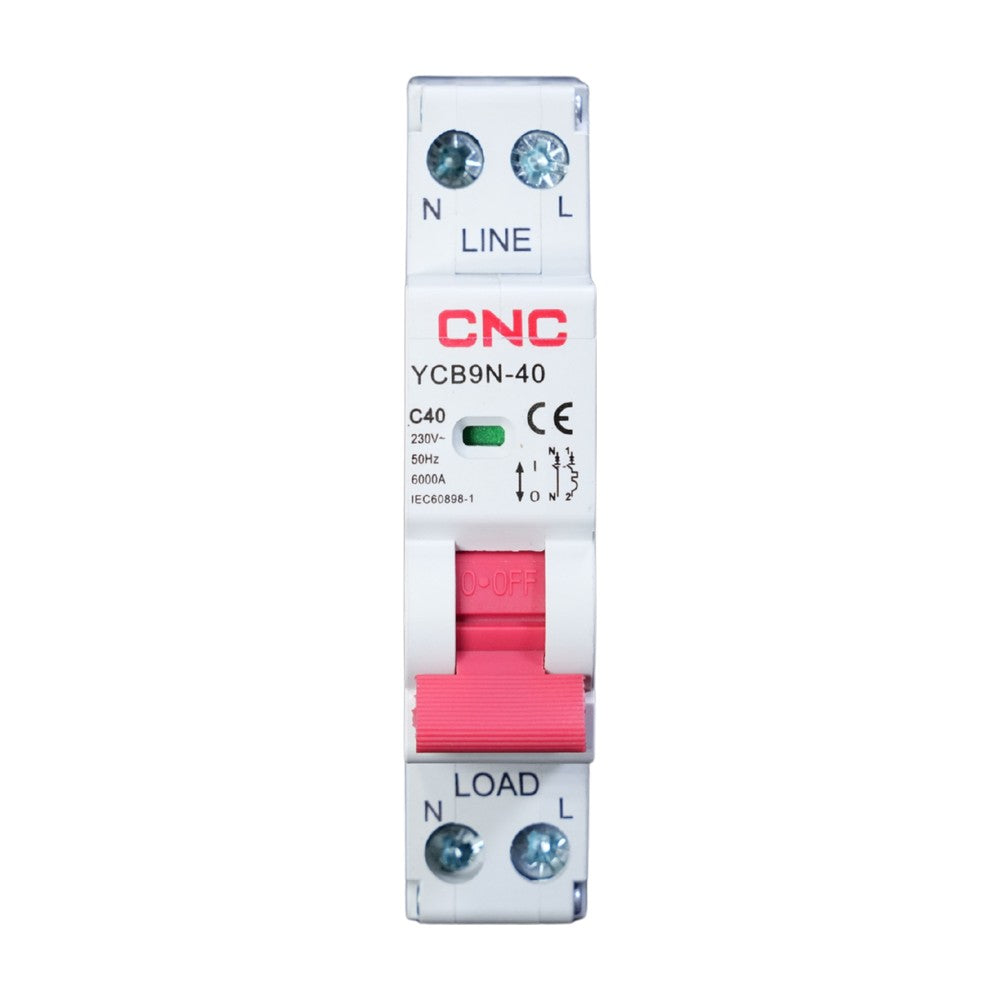

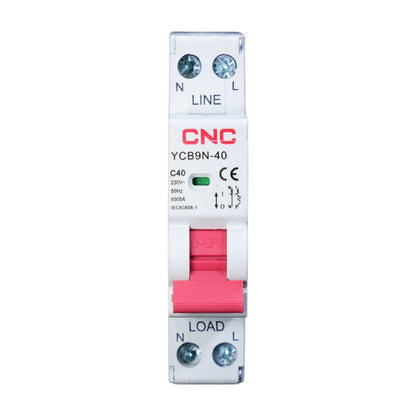

CNC 1P+N MCB AC Circuit Breaker YCB9N-40
CNC 1P+N MCB AC Circuit Breaker YCB9N-40
Free delivery on orders of Rs 3,000 and above
Couldn't load pickup availability
- Cash on DeliveryPay when it arrives
- Delivery all over PakistanIn 2–5 working days
- Genuine brand100% original products
- 7-day easy returnsOn unused items
Product details
Description
Description
General
● Provides overload and short Circuit protection for electrical systems.
● Suitable for residential, commercial, and industrial applications.
● Conforms to IEC/EN 60898-1 safety standards.
● Easy installation with DIN rail compatibility and flexible connections.
Ac Breaker Key Features
1. Comprehensive Protection
Ensures safety with reliable overload and short circuit protection for electrical systems. Ideal for preventing damage and ensuring smooth operations.
● Protects against overload and short circuit faults.
● Thermal-magnetic release for precise performance.
2. Versatile Applications
Ac Breaker Designed for residential, commercial, and industrial setups, catering to diverse environments and requirements.
● Suitable for energy industries and infrastructure projects.
● Supports B (3-5In) and C (5-10In) tripping curves.
3. High Performance
Built to handle demanding conditions with a high breaking capacity and long operational life.
● Rated breaking capacity of 6000A.
● Electrical life of 8,000 cycles and mechanical life of 20,000 cycles.
4. Durable and Reliable Build
Crafted for durability, withstanding a wide range of temperatures and ensuring consistent operation.
● Operates in temperatures from -5°C to +40°C.
● Insulation voltage of 500V and impulse withstand voltage of 4000V.
Specifications
Specifications
|
Specification |
Details |
|
Type Standard |
IEC/EN 60898-1 |
|
Rated Current In (A) |
6, 10, 16, 20, 25, 32, 40 |
|
Poles |
1P+N |
|
Rated Voltage Ue (V) |
230 |
|
Insulation Voltage Ui (V) |
500 |
|
Rated Frequency (Hz) |
50/60 |
|
Rated Breaking Capacity (A) |
6000A |
|
Rated Impulse Withstand Voltage Uimp (kV) |
4 |
|
Dielectric Test Voltage (1 min) |
2kV |
|
Pollution Degree |
2 |
|
Thermo-magnetic Release Characteristic |
B, C |
|
Electrical Life (times) |
8000 |
|
Mechanical Life (times) |
20000 |
|
Protection Degree |
IP20 |
|
Storage Temperature (°C) |
-25 ~ +70 |
|
Reference Temp for Thermal Element |
30°C |
|
Ambient Temperature (°C) |
≤35°C daily average |
|
Terminal Connection Type |
Cable/Pin-type busbar |
|
Terminal Size (Cable, mm²/AWG) |
16 mm² / 18-5 AWG |
|
Terminal Size (Busbar, mm²/AWG) |
10 mm² / 18-5 AWG |
|
Tightening Torque (N·m/In-lbs) |
2 N·m / 18 In-lbs |
|
Mounting |
On DIN rail EN 60715 (35mm) via fast clip |
|
Connection |
From top or bottom |
