CHINT - Timer Switch

Name: CHINT - Timer Switch
Brand: CHINT
Price: 5130.00 PKR
Availability: InStock

Rs.5,130

Sale Sold out

Free delivery on orders of Rs 3,000 and above

Only 4 left in stock – order soon

Cash on DeliveryPay when it arrives
Delivery all over PakistanIn 2–5 working days
Genuine brand100% original products
7-day easy returnsOn unused items

View full details

Product details

Description

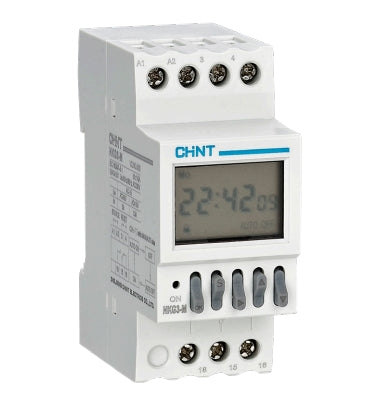

The CHINT NKG3 Time Switch delivers precise and automated control for electrical circuits, ensuring efficient operation of lighting, signage, and industrial equipment. Designed for AC 50/60Hz systems up to 240V, it allows manual or automatic switching, daylight saving adjustment, and latitude-based timing. With 16 programmable ON/OFF groups, a built-in maintenance-free battery, and DIN rail installation, the NKG3 provides dependable scheduling and energy optimization for commercial and industrial automation systems.

Product Information

Standard compliance: IEC/EN 60947-5-1
Rated control supply voltage (Us): AC 220V / AC 230V / AC 240V, 50/60 Hz
Allowable supply voltage fluctuation: 85% – 110% of Us
Rated operational current (Ie): up to 3A
Rated insulation voltage (Ui): 250V
Utilization category: AC-15
- 240V / 3A
- 415V / 1.9A
Thermal current (Ith): 16A
Control modes:
- Manual ON
- Manual OFF
- Automatic operation
- Latitude and daylight saving time function
Programming capacity: 16 ON/OFF groups per day
Time control range: 1 minute – 24 hours
Timing accuracy: ±2 seconds/day
Minimum time interval: 1 minute
Electrical life: ≥ 10,000 operations
Mechanical life: ≥ 100,000 operations
Built-in power reserve: Internal battery (no replacement required)
Ambient temperature: −5 °C to +40 °C
Installation method: 35 mm DIN rail mount
Dimensions:
- Height: 86 mm
- Width: 37 mm
- Depth: 68.6 mm
Wiring terminals: Screw-type connectors
Mounting position: Vertical installation
Operation indicator: LCD or LED display (depending on model variant)
Weight: Approx. 0.25 kg
Connection options:
- Direct control (for small single-phase loads ≤ 3A)
- Single-phase expansion control via AC contactor
- Three-phase control mode with external contactor (220V or 380V coil)
