CNC DC FUSE 1000V Holder + Fuse YCF8PV-32
CNC DC FUSE 1000V Holder + Fuse YCF8PV-32
Free delivery on orders of Rs 3,000 and above
Couldn't load pickup availability
- Cash on DeliveryPay when it arrives
- Delivery all over PakistanIn 2–5 working days
- Genuine brand100% original products
- 7-day easy returnsOn unused items
Product details
Description
Description
DC Fuse 1000V

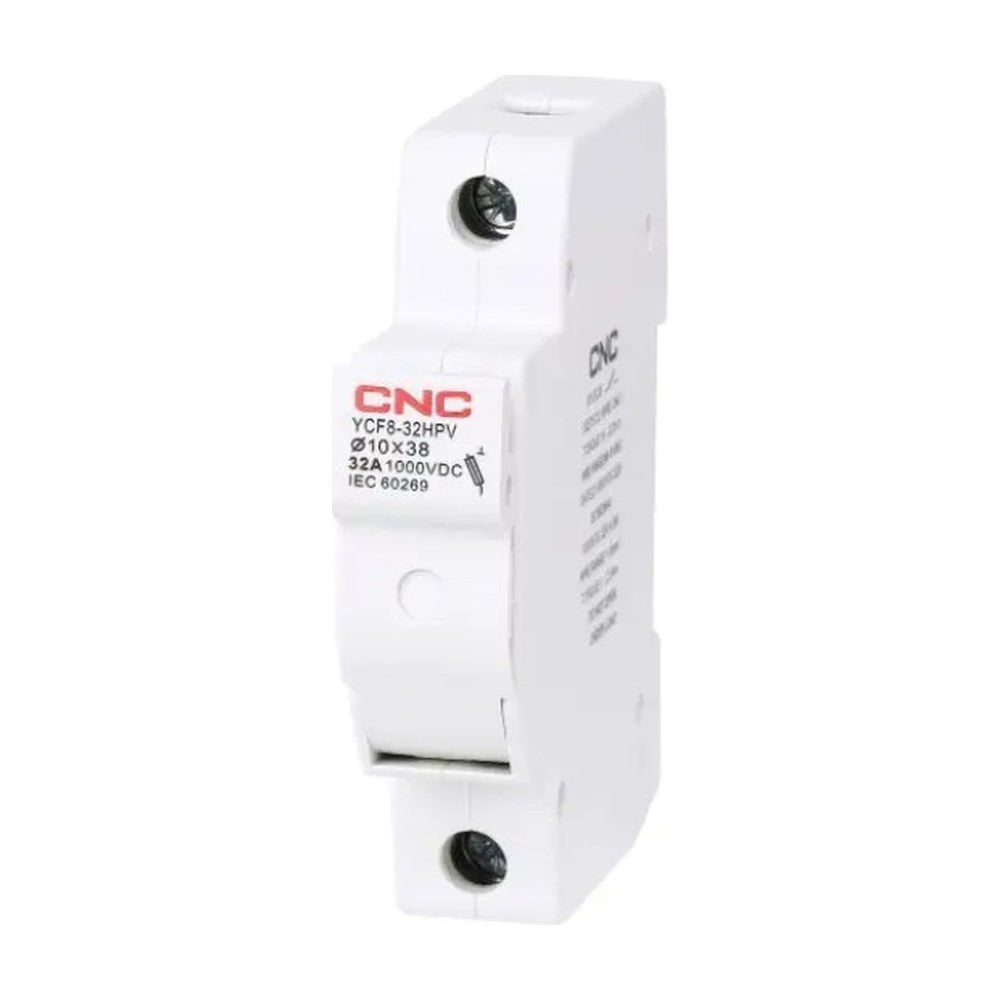

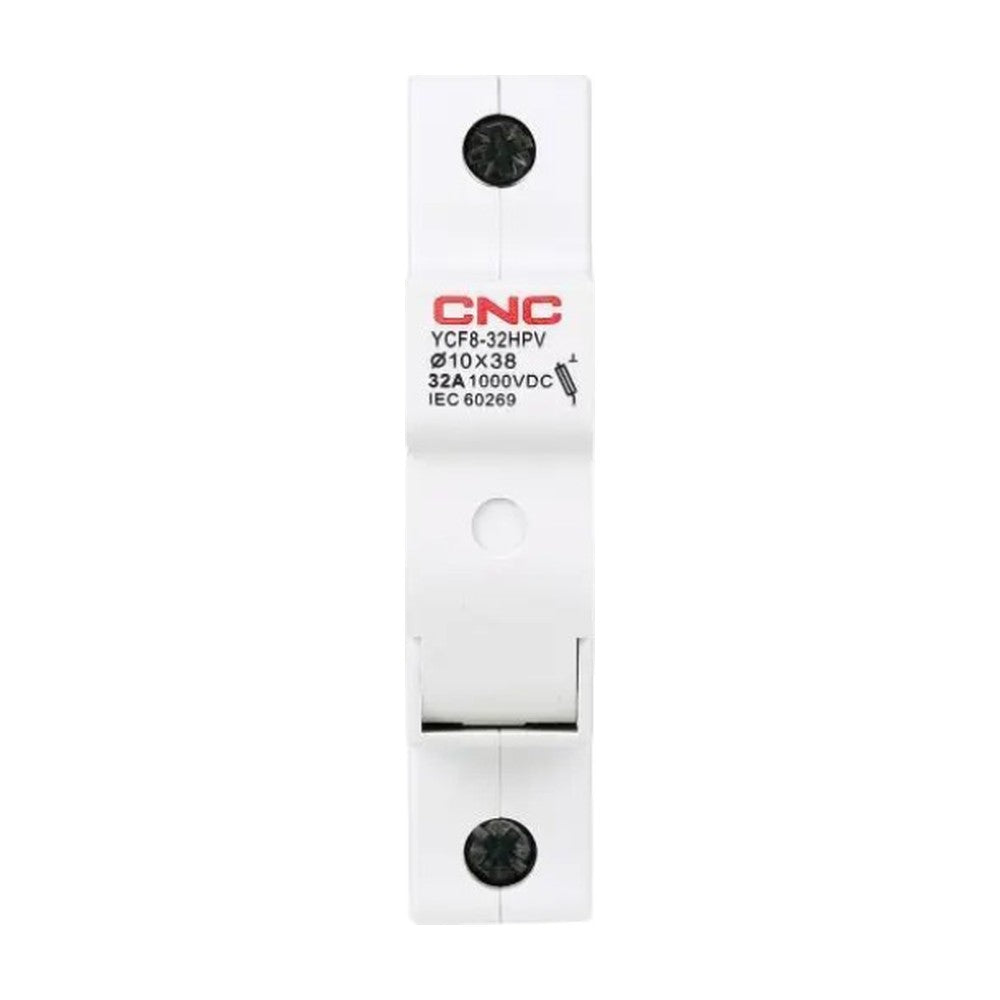

The CNC 1000V DC Fuse Holder + Fuse YCF8-32 offers high-performance protection for solar photovoltaic and DC systems.
- High Voltage & Current Ratings
○ Rated operating voltage up to DC1000V.
○ Rated current capacity of 32A.
- Enhanced System Protection
○ Breaks line overload and short-circuit current generated by current feedback.
○ Designed to protect photovoltaic components, solar panels, and inverters.
- Versatile Applications
○ Ideal for solar photovoltaic DC combiner boxes.
○ Suitable for electric drive systems, power supply systems, and auxiliary systems.
○ Can be used in any DC circuit for overload and short circuit protection.
- Reliable and Durable Design
○ Offers robust protection for electrical components.
○ Designed for long-term, reliable performance.
DC Fuse Specifications
● Model: YCF8-PV Series
● Rated Voltage: DC1000V
● Rated Current: 32A
● Applications:
○ Solar photovoltaic systems.
○ Electric drive systems.
○ DC circuits requiring overload and short circuit protection.
General
● CNC 1000V DC Fuse Holder + Fuse YCF8-32 provides reliable protection for DC circuits.
● Rated for DC1000V and 32A, ideal for solar photovoltaic systems.
● Prevents overload and short circuits in panels, inverters, and electrical components.
● Widely used in solar, electric drive, and power supply systems.
● Ensures safe and efficient circuit protection.
Brand
CNC
|
Operating Environment and Installation |
|
|
Working Temperature |
-40°C ≤ T ≤ +90°C |
|
Altitude |
≤2000m |
|
Humidity |
When the maximum temperature is +40°C, the relative humidity of the air shall not exceed 50%, and higher humidity can be allowed at lower temperatures. For example, +90% at 25°C. Special measures shall be taken for occasional condensation due to temperature changes. |
|
Installation Environment |
In a place where there is no explosive medium and the medium is not enough to corrode metal and damage insulation gas and conductive dust. |
|
Pollution Degree |
Level 3 |
|
Installation Category |
III |
|
Installation Method |
TH-35 Din-rail installation |
Photovoltic Fuse 1000V
General

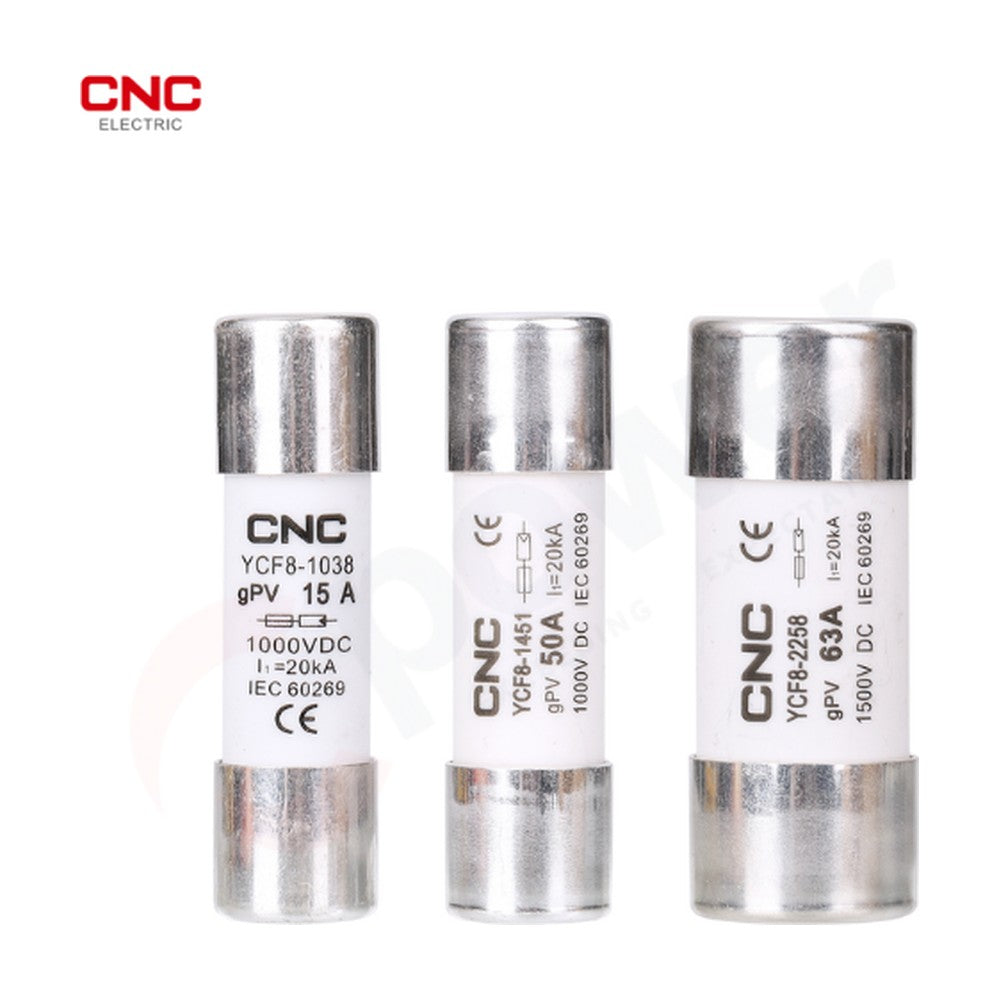

The variable cross-section melt made of pure silver sheet (or silver wire winding) is soldered with low-temperature tin and packaged in a fusion tube made of high-strength porcelain.
The fusion tube is filled with chemically treated and specially processed high-purity quartz sand, which is used as the arc-extinguishing medium, and the two ends of the melt are firmly electrically connected with the contacts by electric welding.
|
Model |
Size |
Rated Current |
Rated Voltage |
|
Fuse |
10×38 |
15A, 20A, 25A, 32A |
DC1000V |
Specifications
Specifications
|

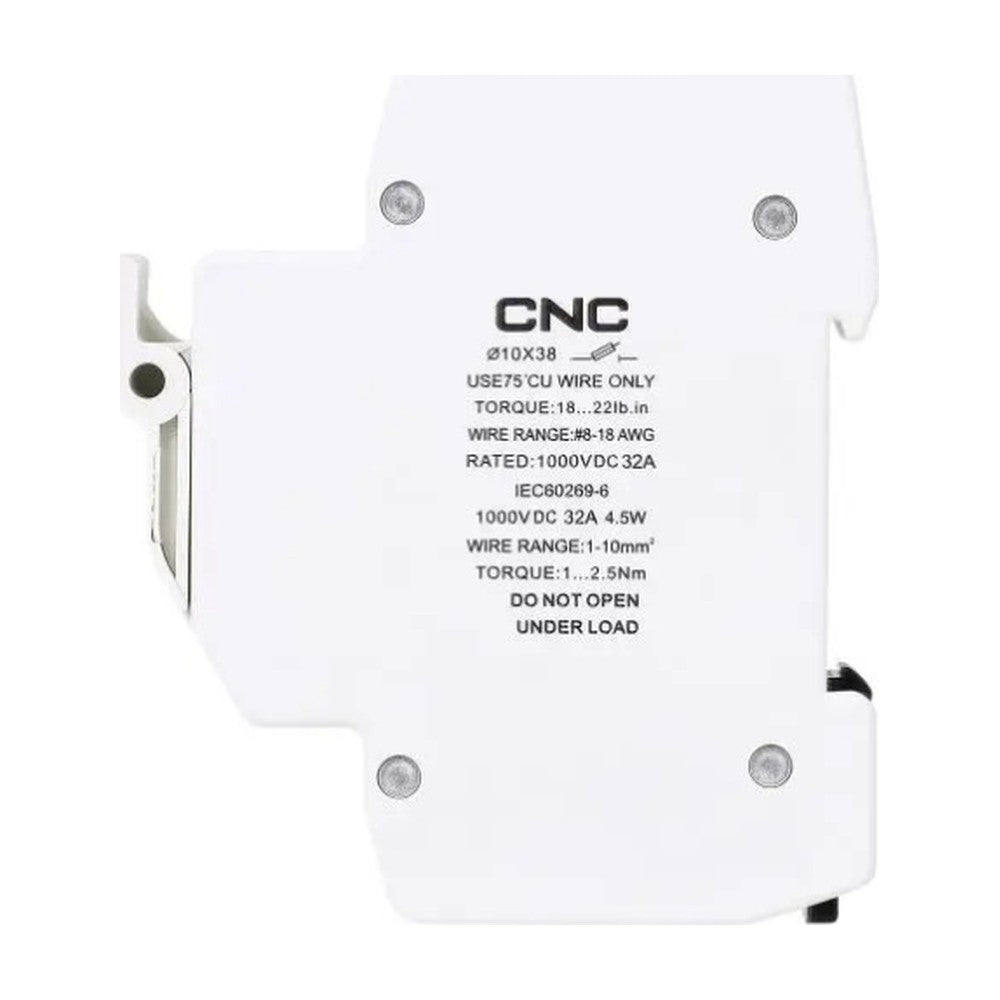

Technical Data |
YCf8-32PV |
|
Specifications |
standard, X: With display, H: High base |
|
Fuse Size (mm) |
10×38 |
|
Rated Working Voltage Ue (V) |
DC1000 |
|
Rated Insulation Voltage Ui (V) |
DC1500 |
|
Use Category |
gPV |
|
Standard |
IEC60269-6, UL4248-19 |
|
Number of Poles |
1P |
