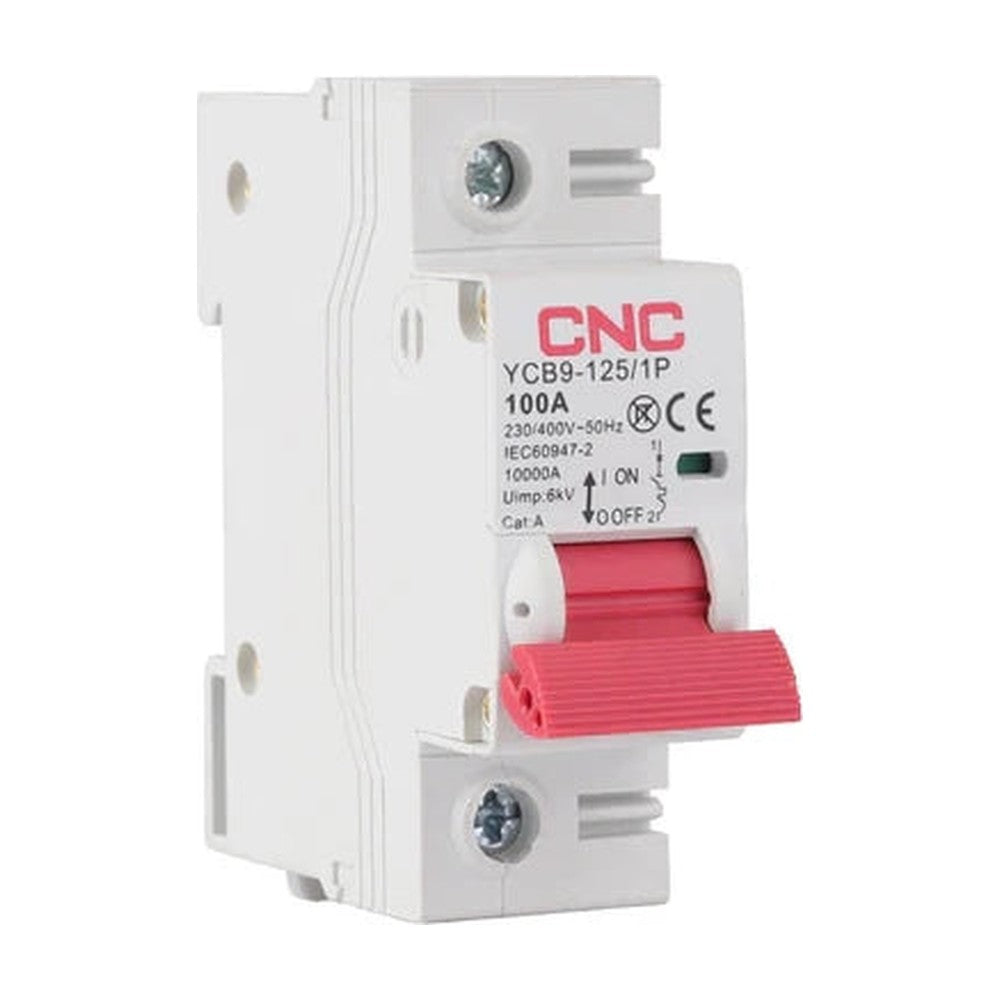

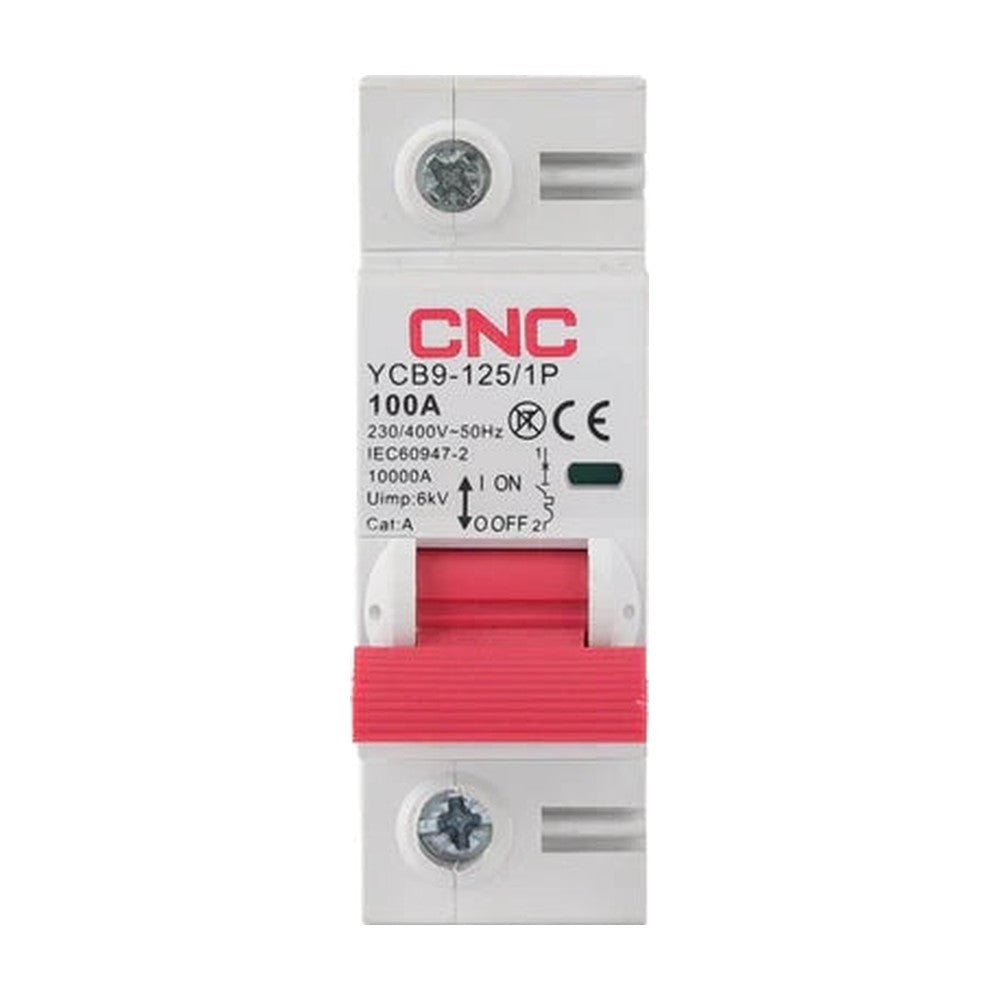

CNC 1P 100A MCB AC Circuit Breaker YCB9-125
CNC 1P 100A MCB AC Circuit Breaker YCB9-125
Free delivery on orders of Rs 3,000 and above
Couldn't load pickup availability
- Cash on DeliveryPay when it arrives
- Delivery all over PakistanIn 2–5 working days
- Genuine brand100% original products
- 7-day easy returnsOn unused items
Product details
Description
Description
General
1.Overload protection
2.Short circuit protection
3.Controlling
4.Used in residential building, non-residential building, energy source industry and infrastructure.
Description
Type：YCB9-125
Product Name：27mm Miniature Circuit Breaker
In（A）：63,80,100,125
Poles：1P
Breaking Capacity：6kA
Tripping Curve：8~12In
Certificate：CE,EAC
Specifications
Specifications
|
Type |
Standard |
IEC60947-2 |
IEC/EN 60898-1 |
|
Electrical features |
|||
|
Rated current In |
A |
63, 80, 100, 125 |
|
|
Poles |
P |
1, 2, 3, 4 |
|
|
Rated voltage Ue |
V |
230/400 |
|
|
Insulation voltage Ui |
V |
500 |
|
|
Rated frequency |
Hz |
50/60 |
|
|
Rated breaking capacity |
A |
6000 |
|
|
Rated impulse withstand voltage (1.2/50) Uimp |
V |
6000, 10000 |
|
|
Dielectric test voltage at ind. Freq. for 1min |
kV |
2.5 |
|
|
Pollution degree |
3 |
||
|
Thermo-magnetic release characteristic |
8-12In |
B, C, D |
|
|
Mechanical features |
|||
|
Electrical life |
t |
1500 |
|
|
Mechanical life |
t |
10000 |
|
|
Contact position indicator |
Yes |
||
|
Protection degree |
IP20 |
||
|
Reference temperature for setting of thermal element |
30 |
||
|
Ambient temperature (with daily average ≤35°C) |
|||
