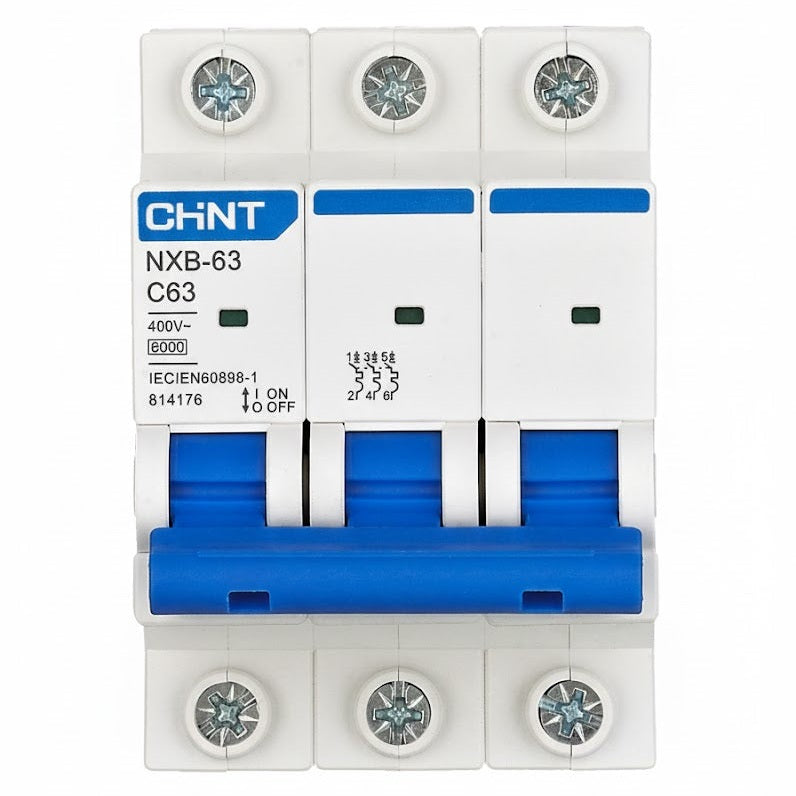

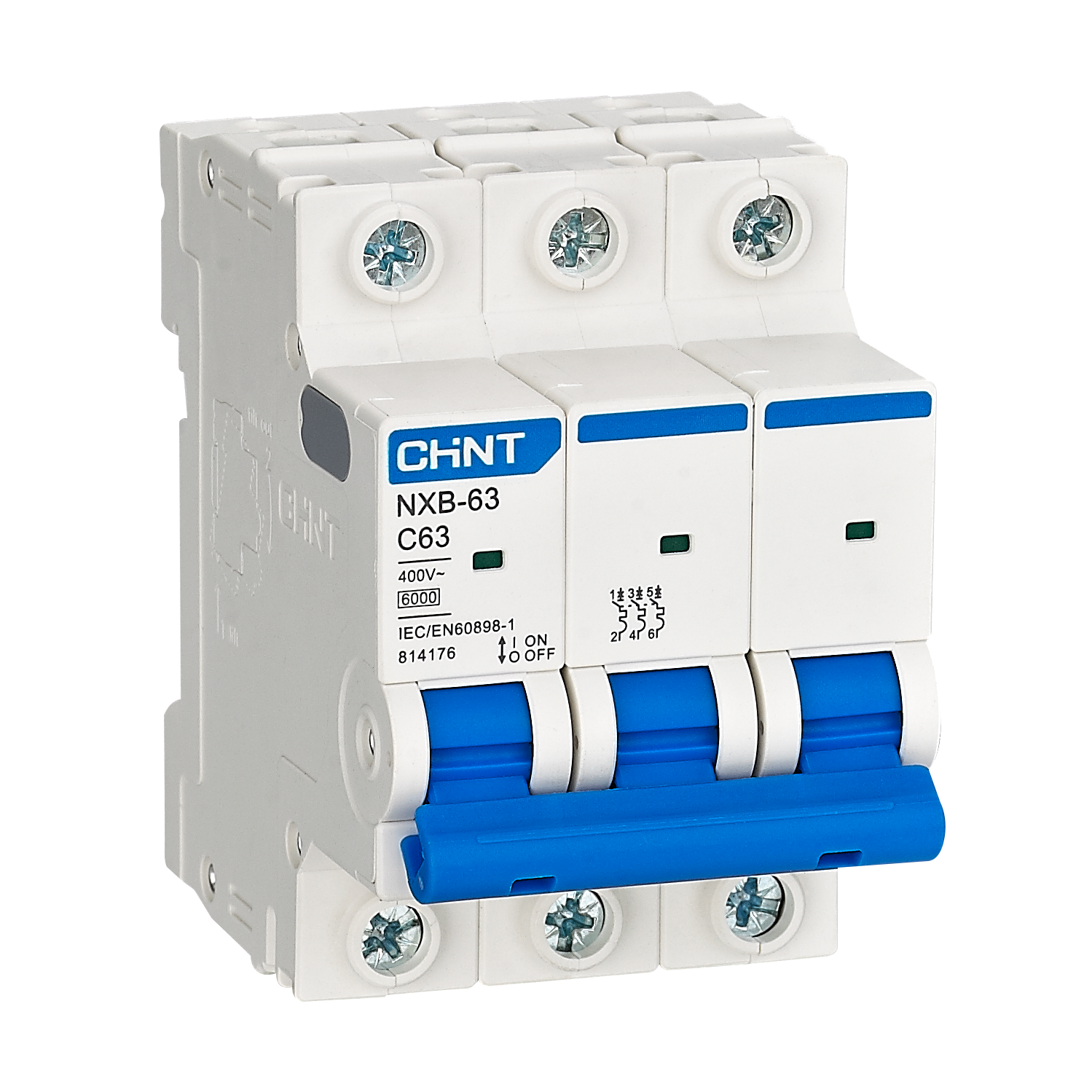

CHINT Three Pole AC Circuit Breakers

Rs.1,650

Sale Sold out

Free delivery on orders of Rs 3,000 and above

Size 32 Ampere 63 Ampere

Cash on DeliveryPay when it arrives
Delivery all over PakistanIn 2–5 working days
Genuine brand100% original products
7-day easy returnsOn unused items

View full details

Product details

Description

The NXB-63 Miniature Circuit Breaker (MCB) provides reliable protection against overload and short-circuit faults in low-voltage electrical systems. Designed for residential, commercial, and light industrial use, it features high breaking capacity (up to 10kA) and precise thermal-magnetic tripping characteristics (B, C, D curves). With compact dimensions, a long mechanical lifespan, and compliance with IEC/EN60898-1, the NXB-63 MCB ensures safe and stable performance for power distribution networks

Product Information

Function: Protection against overload and short-circuit faults
Standard Compliance: IEC/EN 60898-1
Certifications: CE, SNI, NOM, EAC, SII, RoHS, REACH, Carbon Footprint
Rated Current (In): 1A, 2A, 3A, 4A, 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A
Rated Voltage (Ue):
- 220V~/230V~/240V~ (1P, 1P+N, 2P)
- 380V~/400V~/415V~ (2P–4P, 3P+N)
Frequency: 50/60 Hz
Tripping Characteristics: B, C, D Curves
Number of Poles: 1P, 1P+N, 2P, 3P, 3P+N, 4P
Rated Short-Circuit Breaking Capacity (Icn): 6kA / 10kA (depending on model)
Rated Service Short-Circuit Capacity (Ics): 6kA / 7.5kA
Rated Insulation Voltage (Ui): 500V
Rated Impulse Withstand Voltage (Uimp): 4kV
Mechanical Life: 20,000 operations
Electrical Life: 10,000 operations
Mounting: 35mm DIN rail (TH35-7.5)
Connection Type: Top or bottom wiring
Terminal Capacity:
- Min: 1mm²
- Max: 25mm²
Tightening Torque: 2.0 N·m
Operating Temperature: −35°C to +70°C
Storage Temperature: −35°C to +85°C
Altitude: ≤2000m
Protection Degree:
- IP20 (direct mounting)
- IP40 (inside distribution box)
Pollution Degree: Class II
Compatible Accessories: AX-X1, AL-X1, SHT-X1, OVT-X1, UVT-X1, OUVT-X1
Power Consumption (per pole):
- 3W (1–10A), up to 13W (63A)
Dimensions: Compact modular design; fits standard distribution boards
