CHINT

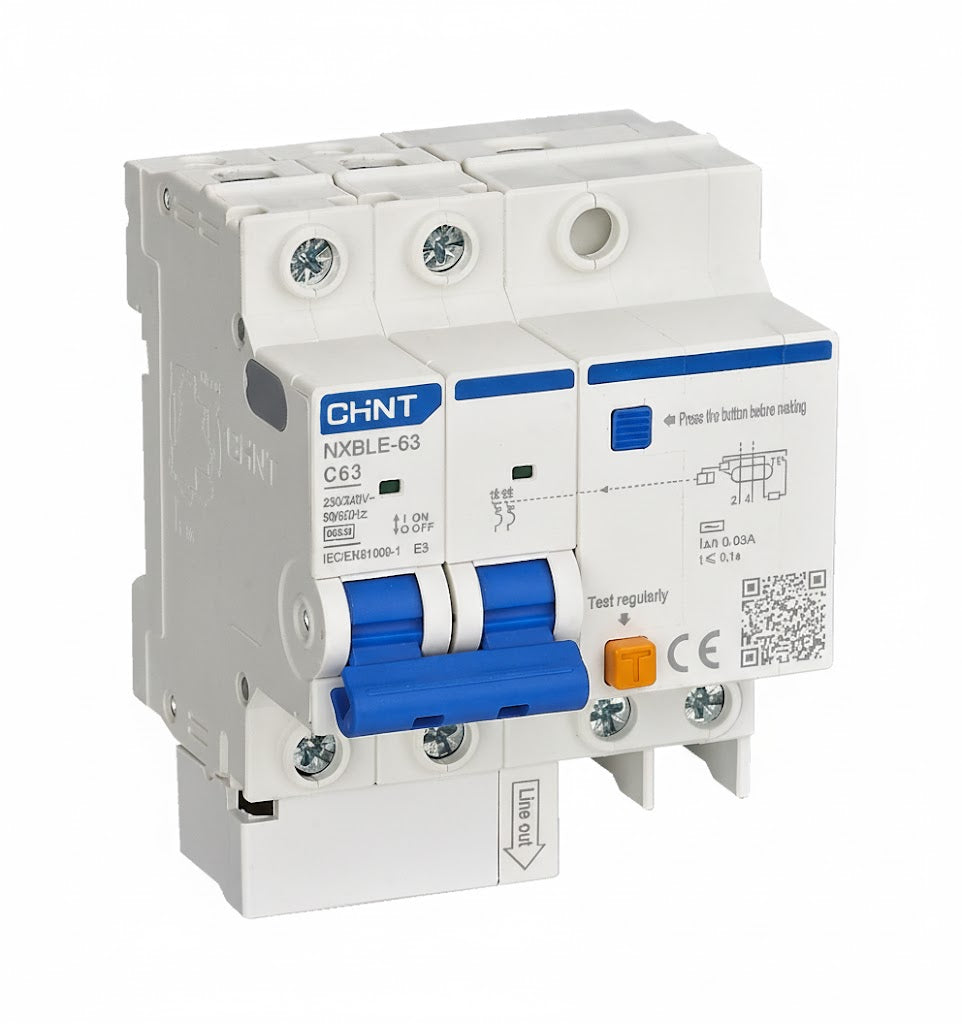

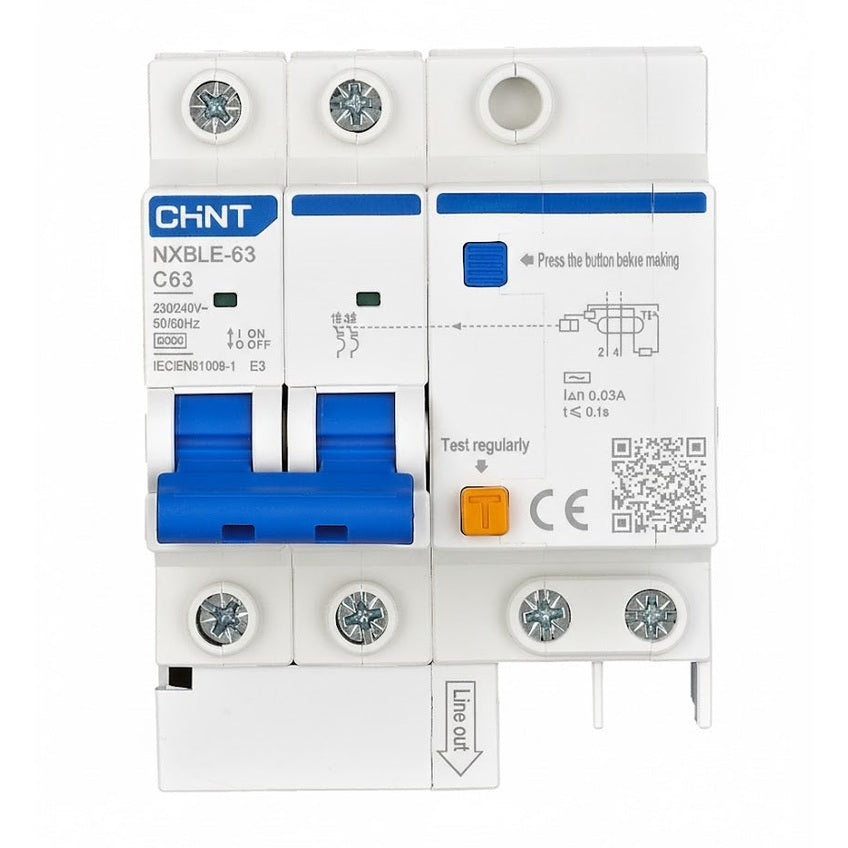

CHINT Two Pole Earth Leakage

Rs.2,450

Sale Sold out

Free delivery on orders of Rs 3,000 and above

Only 5 left in stock – order soon

Type 63A Sensitivity 30/300 mA

Cash on DeliveryPay when it arrives
Delivery all over PakistanIn 2–5 working days
Genuine brand100% original products
7-day easy returnsOn unused items

View full details

Product details

Description

The NXBLE-63 Residual Current Operated Circuit Breaker (RCBO) combines residual current, overload, and short-circuit protection in one compact unit. Designed for AC 50/60Hz systems up to 240/415V, it ensures reliable personal and equipment safety by detecting earth leakage faults while maintaining circuit continuity. With rated currents from 6A to 63A, B and C tripping curves, and breaking capacity up to 6kA, the NXBLE-63 offers enhanced electrical protection and complies with IEC/EN 61009-1 standards for residential, commercial, and industrial power systems.

Product Information

Function: Combined residual current, overload, and short-circuit protection
Standard Compliance: IEC/EN 61009-1
Rated Current (In): 6A, 10A, 13A, 16A, 20A, 25A, 32A, 40A, 50A, 63A
Poles: 1P+N, 2P, 3P+N, 4P
Rated Voltage (Ue): 240/415V AC
Rated Frequency: 50/60Hz
Tripping Characteristics: B and C curves
Rated Residual Operating Current (IΔn): 30mA, 100mA, 300mA
Rated Short-circuit Breaking Capacity (Icn): 6kA
Rated Insulation Voltage (Ui): 500V
Rated Impulse Withstand Voltage (Uimp): 6kV (1.2/50μs)
Dielectric Test Voltage: 2kV for 1 minute
Operating Temperature: −25°C to +70°C
Storage Temperature: −40°C to +70°C
Mechanical Life: ≥20,000 operations
Electrical Life: ≥4,000 operations
Protection Degree: IP20
Mounting: DIN rail EN 60715 (35mm), with fast clip design
Terminal Capacity:
- Cable: 25mm² (AWG 18–3)
- Busbar: 10mm² (AWG 18–8)
Tightening Torque: 2 N·m (17.7 in-lbs)
Applicable Systems: TN and IT low-voltage networks
Accessories Compatibility: XF9, XF9J, SHT-X1, UVT-X1, OUVT-X1, SMG-WL1SR
