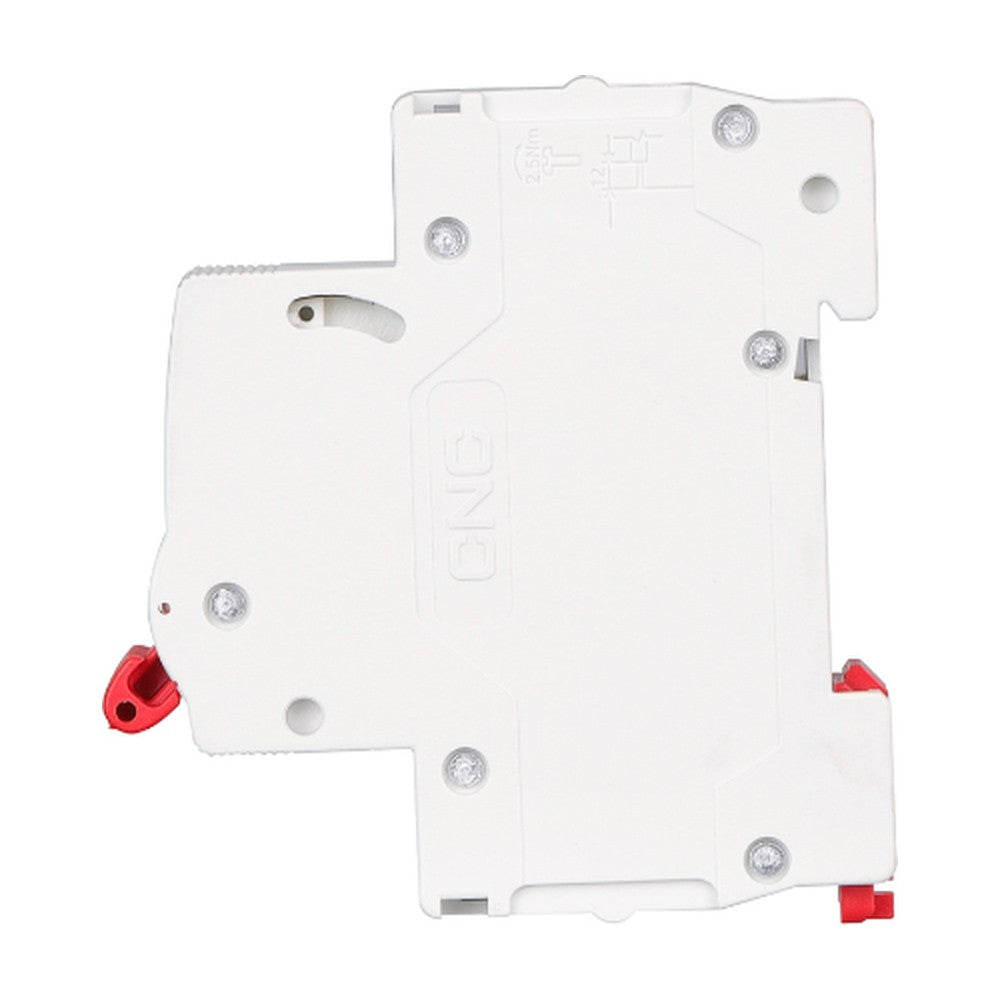

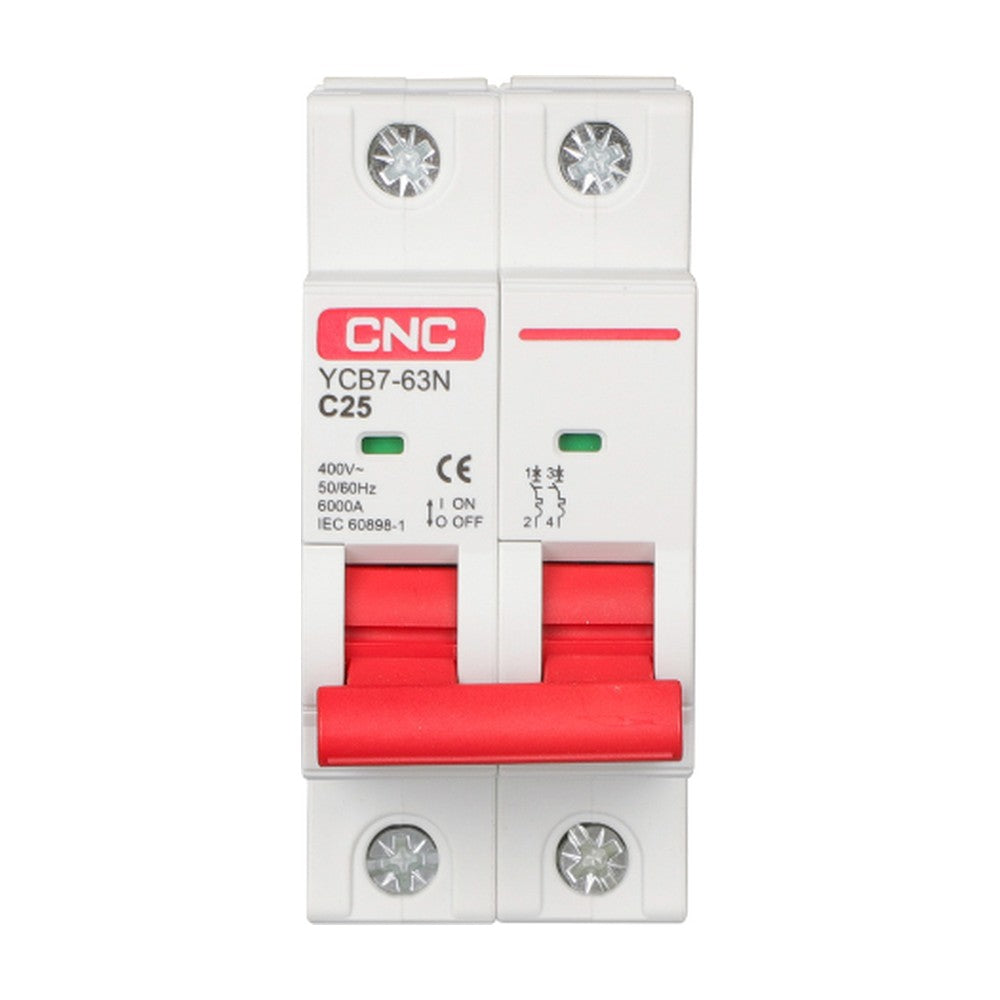

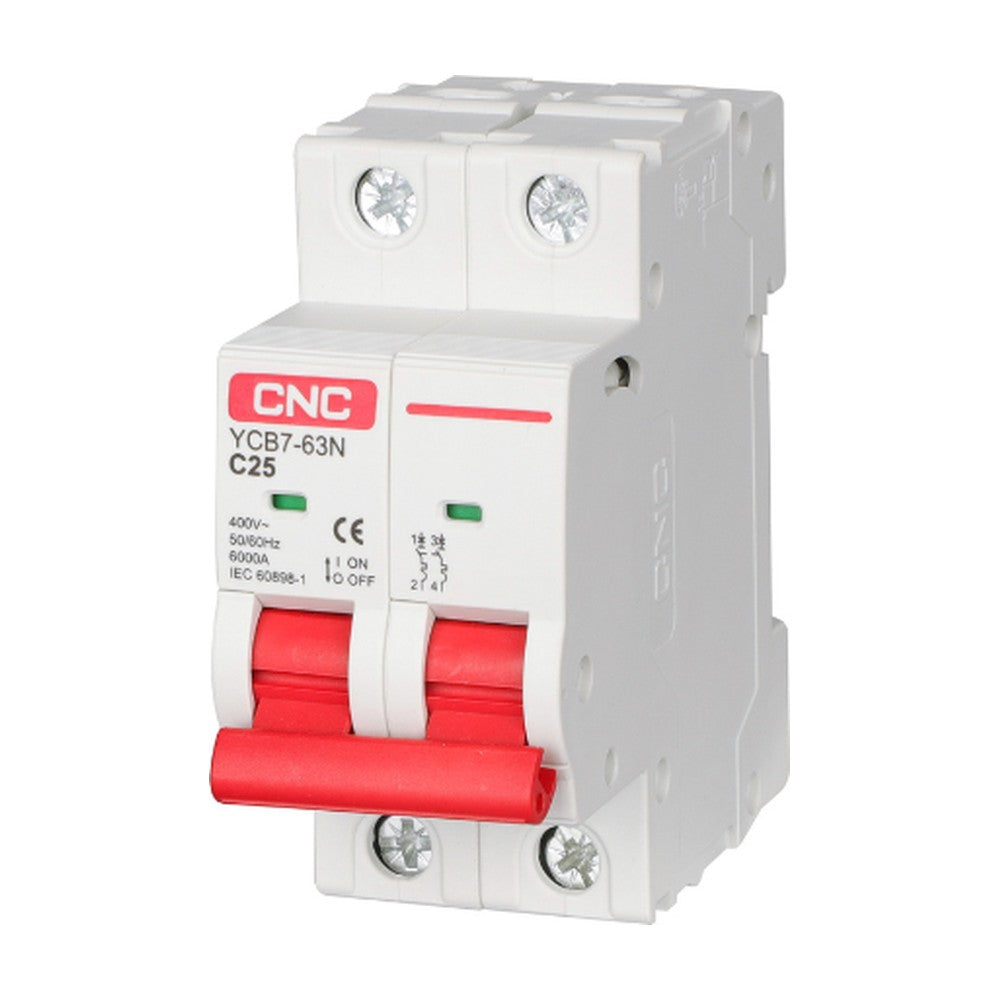

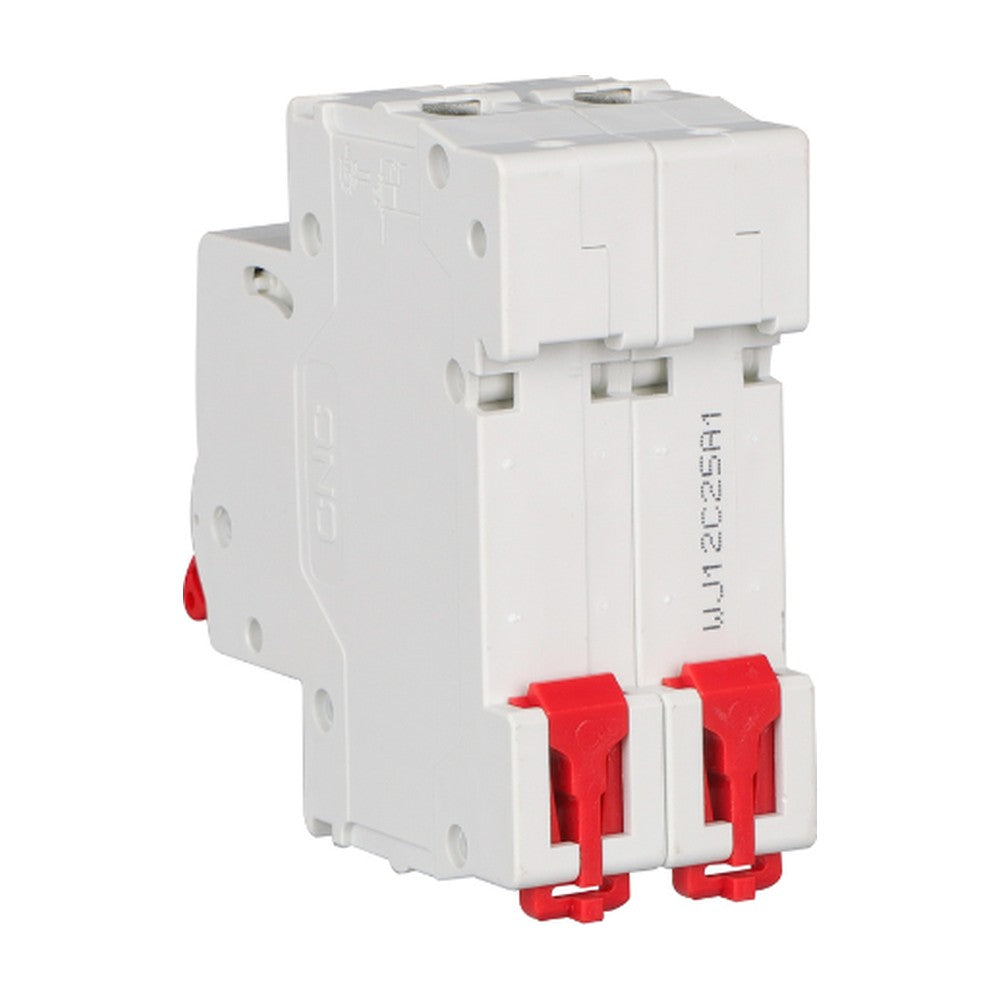

CNC 2P MCB AC Circuit Breaker YCB7H-63A
CNC 2P MCB AC Circuit Breaker YCB7H-63A
Free delivery on orders of Rs 3,000 and above
Couldn't load pickup availability
- Cash on DeliveryPay when it arrives
- Delivery all over PakistanIn 2–5 working days
- Genuine brand100% original products
- 7-day easy returnsOn unused items
Product details
Description
Description
Ac Breaker Key Features
1. Comprehensive Protection
Offers effective overcurrent, overload, and short circuit protection, ensuring safety for electrical systems.
● Protects against electrical faults and overloads.
● Suitable for AC 50/60Hz circuits.
2. Dual Pole Configuration
AC Cricuit Breaker Designed with a double-pole structure for enhanced flexibility and safety in electrical installations.
● Supports 20A, 32A, 40A, and 63A rated currents.
● Provides reliable protection for both poles.
3. High Performance
Features a breaking capacity of 6.0KA and tripping curves (B, C, D) for diverse applications.
● Handles high fault currents efficiently.
● Meets the needs of residential, commercial, and industrial environments.
Specifications
Specifications
Specification |
Value |
|
Type |
Standard IEC/EN 60898-1 |
|
Rated Current (In) |
16A, 20A, 32A, 40A, 63A |
|
Poles |
2 Pole |
|
Rated Voltage (Ue) |
230/400 V |
|
Insulation Voltage (Ui) |
500 V |
|
Rated Frequency |
50/60 Hz |
|
Rated Breaking Capacity |
6000 A |
|
Rated Impulse Withstand Voltage (Uimp) |
4000 V |
|
Dielectric Test Voltage at Industrial Frequency (1 min) |
2 kV |
|
Pollution Degree |
2 |
|
Thermo-Magnetic Release Characteristic |
B, C, D |
|
Electrical Life |
6000 cycles |
|
Mechanical Life |
20000 cycles |
|
Protection Degree |
IP20 |
|
Ambient Temperature (Daily Average ≤35°C) |
-25~+70°C |
|
Storage Temperature |
-25~+70°C |
|
Terminal Connection Type |
Cable/Pin-type busbar |
|
Terminal Size Top/Bottom for Cable |
25 mm² / AWG 18-3 |
|
Terminal Size Top/Bottom for Busbar |
25 mm² / AWG 18-3 |
|
Tightening Torque |
2 N·m / 18 In-lbs |
|
Mounting |
On DIN rail EN 60715 (35 mm) by means of fast clip |
|
Connection |
From top and bottom |
|
Reference Temperature for Setting of Thermal Element |
30°C |
